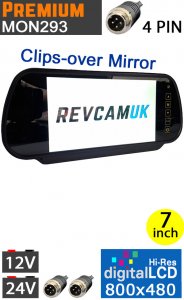

7" Clip-Over Rear View Mirror Monitor with 2x 4 pin inputs | MON293
The 7-inch rear view mirror monitor display described is a popular and reliable option for connecting reversing cameras. It features a high-resolution digital LCD panel with an 800x480 pixel display, providing excellent picture quality. Compared to cheaper monitors with lower resolutions, this monitor offers enhanced clarity and colour replication.
The 7-inch rear view mirror monitor display described is a popular and reliable option for connecting reversing cameras. It features a high-resolution digital LCD panel with an 800x480 pixel display, providing excellent picture quality. Compared to cheaper monitors with lower resolutions, this monitor offers enhanced clarity and colour replication.
The menu system of this monitor is considered one of the most advanced available in reversing camera monitors. It offers various customization options, including the ability to add guidelines when the reverse gear is selected. By attaching the green trigger wire to a reverse light feed, the monitor can automatically display guidelines. These guidelines can be adjusted and even labeled with numbers and distance symbols, offering additional assistance while parking.
The monitor has two video inputs, allowing you to connect and switch between two reversing cameras or rearview cameras. It comes with a full-function remote control for easy operation. The monitor also features a trigger wire that can automatically change the channel when a trigger occurs, such as selecting the reverse gear.

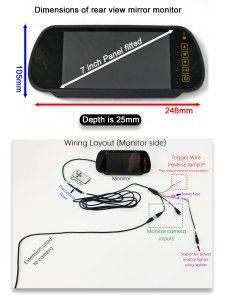

The monitor can be left on all the time, as it provides power to the camera through the 4-pin connector. It comes with a 300cm power loom or wiring harness, equipped with 2x 4-pin "aviation" connectors, which are commonly used in the industry for secure and waterproof connections.
The monitor accepts CVBS (D1) video signal inputs, which is the most common video signal type used in the majority of systems. This ensures compatibility with various cameras and systems.
Overall, this rearview mirror monitor display offers a high-resolution digital LCD panel, advanced menu options, the ability to add guidelines, multiple video inputs, and a reliable and convenient design. Its quality components and picture quality make it a preferred choice for customers who prioritize performance and longevity.
Technical Specs
7” Colour LCD screen
Power supply: 12V/24V
Power Consumption: 8.64W or lower
Digital Screen Resolution: 800 x3(RGB)x480
Operating Temperature: -10C to +65C
2 Inputs
PAL/NTSC/AUTO
Rotation/Mirror on both channels
Full function Remote Control
