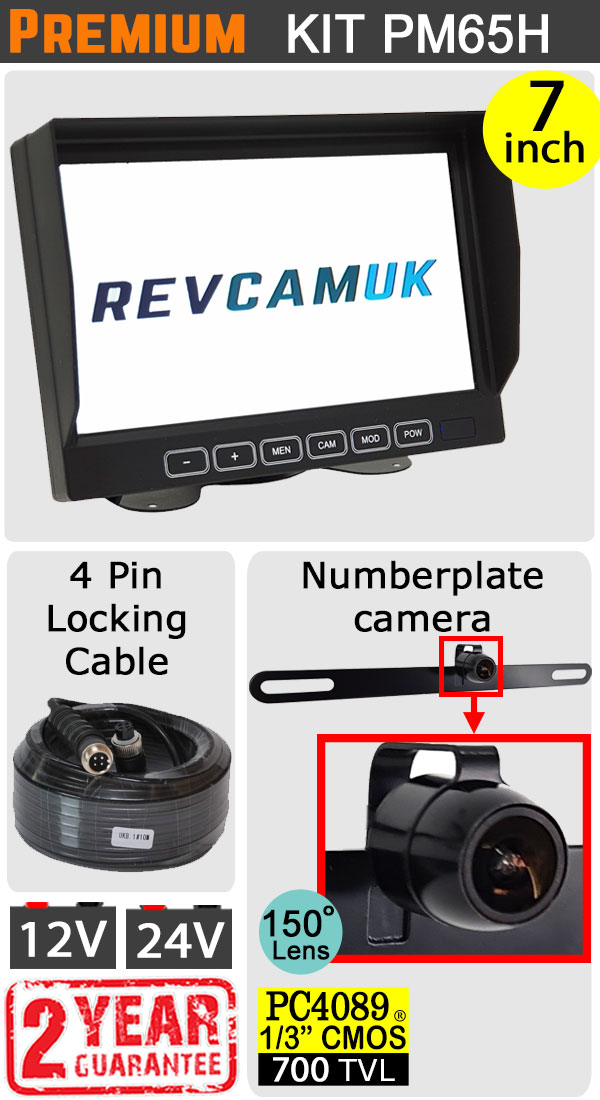

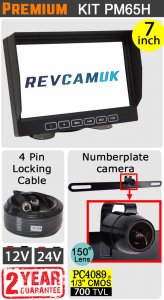

7" Slimline Monitor + Behind Number Plate Bracket Reversing Camera Kit | PM65H
A very capable number plate reversing camera kit. The bracket for the camera hides behind the number plate. Top quality image sensor for camera and 7 inch LCD panel for monitor display.

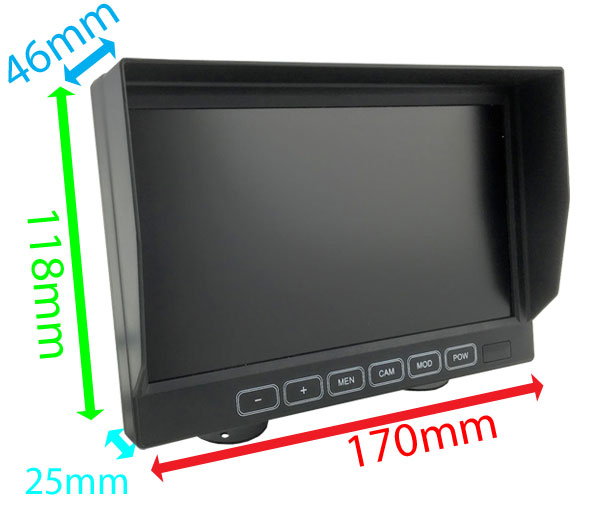

7" Slimline Dash Mount Monitor Display:
- 7" slimline digital high resolution 800x480 pixel display.
- The most popular size for a reversing camera monitor.
- This monitor is made by a factory that produces amazing quality products.
- A really good picture, and a very durable monitor that will last for many, many years to come.
- This monitor gives the ability to add/remove guidelines to the picture (when reverse trigger is used) - you can even adjust the position of these lines in the menu system.
Number Plate Reversing Camera:
- Comes with a top quality image sensor - the 700TVL hi res PC4089 premium CMOS sensor.
- Very wide lens - 150 degrees field of view.
- Made by the factory that makes our brake light cameras, with the same sensor and lens combination.

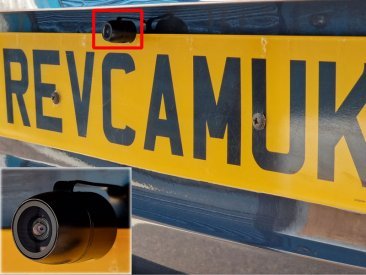

- Bracket for camera mounts behind the number plate (so is not visible), whilst a very small camera pops out from the top of this.
Guarantee and Support:
- Comes with a 2-year guarantee.
- Offers lifetime support from UK specialists.

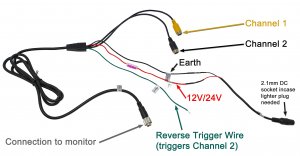

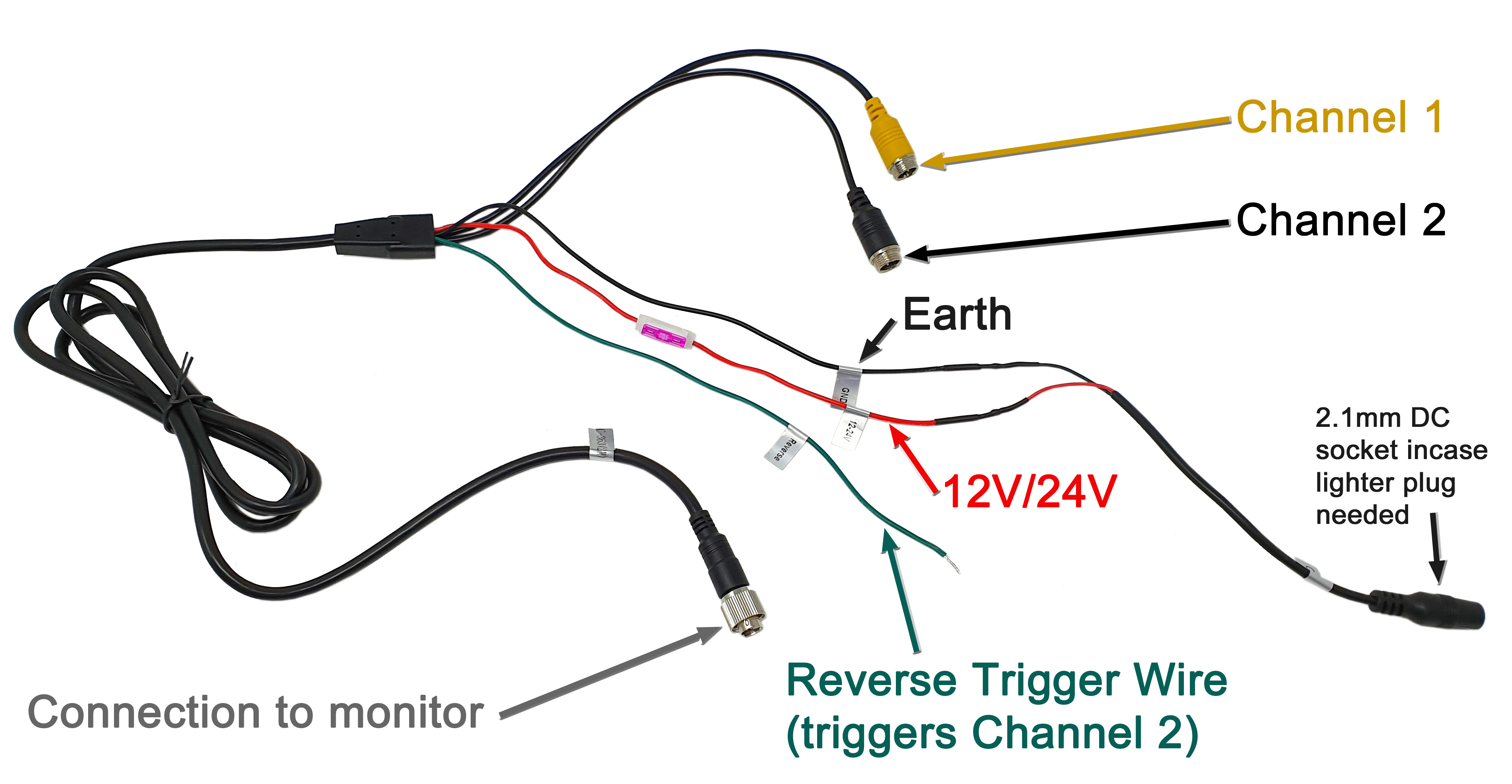

Installation and Power Options:
- Easy installation with various power options.
- Single power connection powers the entire system.
- Standard hardwiring ALWAYS included even when adding the additional connectors.
- See our Fuse Taps / Piggyback Fuse Holders Category for the latest and easiest way of wiring your system in to your vehicles fuse box. We even have a selection with a 2M cable to reach the fuse box of your choice. This is fitted with an Earth/Ground terminal on the black wire, which can be pulled/separated away from the red wire if desired to run elsewhere to a chassis screw or bolt.
 Click preview image to download the PDF file | General Kit Installation instructions Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need |
 Click preview image to download the PDF file | Monitor Instructions If you choose the PM60 series kits you will have the MON16/MON745 monitor supplied, which is covered by these instructions. They will guide you through the various menu functions including rotation, adjustable guidelines, trigger delays, interval mode, and display settings. |
