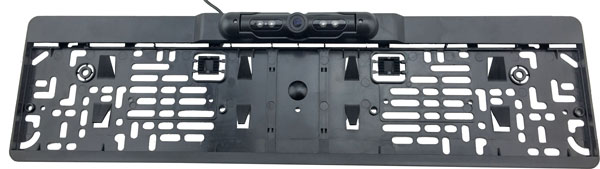

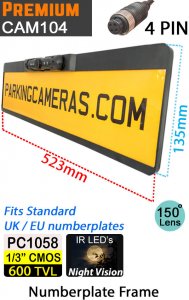

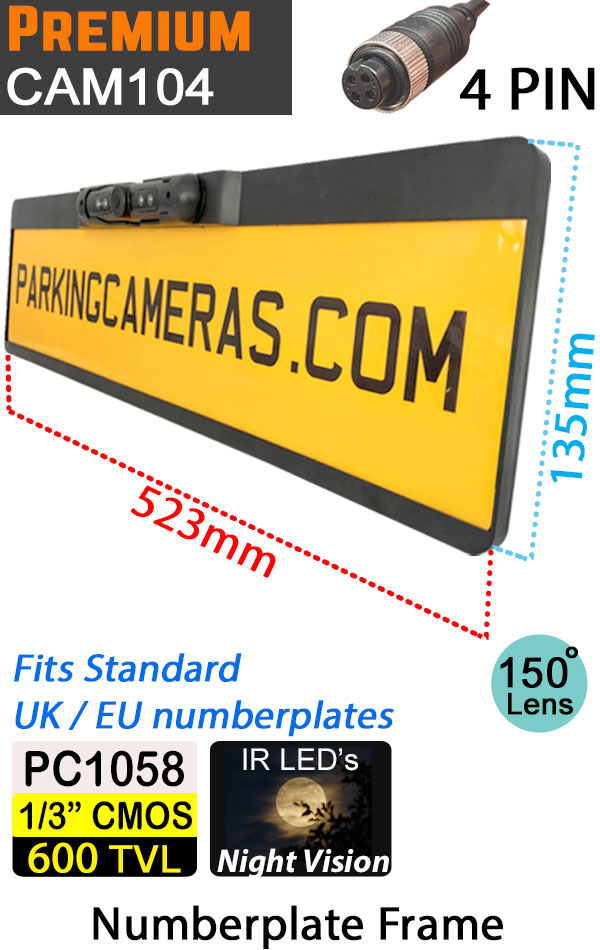

CAM104 - numberplate frame camera - 1/3" 600TVL Premium CMOS sensor - 4 pin connector

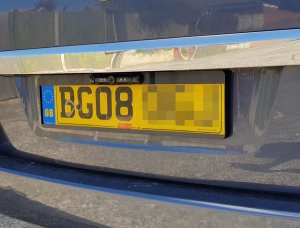

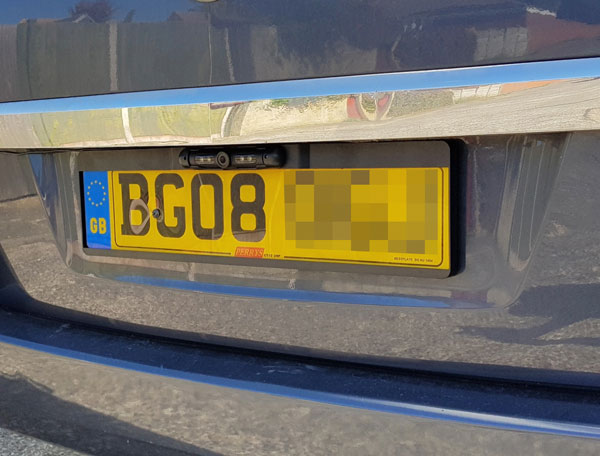

The number plate is a popular area to mount a reversing/parking camera on a car and the number plate frame makes this such an easy camera to install. There are cheap cameras that look similar to this model, this camera is built to last, and to perform. The cheap ones are notorious amongst fitters for leaking due to the barrel design. We use a factory for this camera that makes very high end cameras for some very expensive brands (selling 2-3 times our price), we've never had a leaked camera, and the only time we have seen a camera back has been user damage (crushed cable as they put it between the number plate light and tightened).
The image quality is top-notch, firstly it uses a modern high-res 600TVL PC1058 image sensor, secondly, it has a very good quality aspheric lens, which despite its wide 150-degree angle doesn't show a "fishbowl" effect.
The camera comes with a 90cm fly lead with a 4 pin aviation connector at the end, extension cables and adaptors (for some connector types) are available.
Technical Specs
TV System: PAL
Effective Pixels: 960 (H) x 576 (V)
Resolution: 600TV Lines
Sensing Area: 4.880mm x 3.670mm
Scanning System: 2:1Interlace
Sync. System: Internal
Minimum Illumination: 0 lux(LED ON)
Horizontal Sync. Frequency: 15.625KHz
Vertical Sync. Frequency: 50Hz
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 43.3dB
White Balance: Auto
Electronic Shutter: 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto
Power Supply: DC12V
Operating Temperature: -20°C~70°C , RH95% MAX
Storage Temperature: -40°C~80°C, RH95% MAX
Lens Angle: 150° Approx (real world may be different as monitors crop the image)
