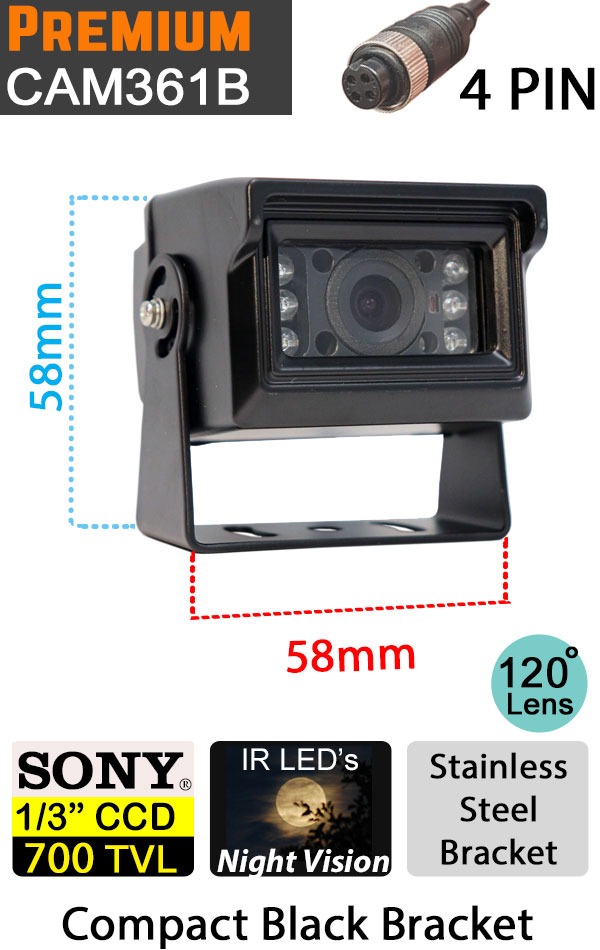

CAM361B - Black compact bracket camera - Sony 1/3" 700TVL CCD sensor - 4 pin connector
A smaller compact reversing camera, but still packs a punch. Still has a 700TVL 1/3" Sony CCD image sensor, night vision IR LED's, just in a smaller package.
The CAM361 is the little brother of our standard bracket camera, originally brought in due to being asked by 4x4 owners for a smaller version for their vehicles. Being on a bracket makes this camera so versatile, the bracket itself is made from stainless steel to prevent rusting. Despite its small size, the image sensor (the part that captures the picture) is the same as its bigger brother, which is the very respected 1/3" Sony CCD 960H 700TVL 811. IR LED's coupled with the sensitive image sensor means this camera works well in the dark. The camera comes with a 45cm fly lead with a 4 pin aviation connector at the end, extension cables and adaptors (for some connector types) are available.
Technical Specs
Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR leds on)
Video Output:1.0vp-p,75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50Sec-12.5μSec (PAL)
BLC: Auto
Current Consumption:100mA
Waterproof to Ip68
Infra red LEDs to provide night view
Mirror image only
Stainless Steel Bracket (painted)
