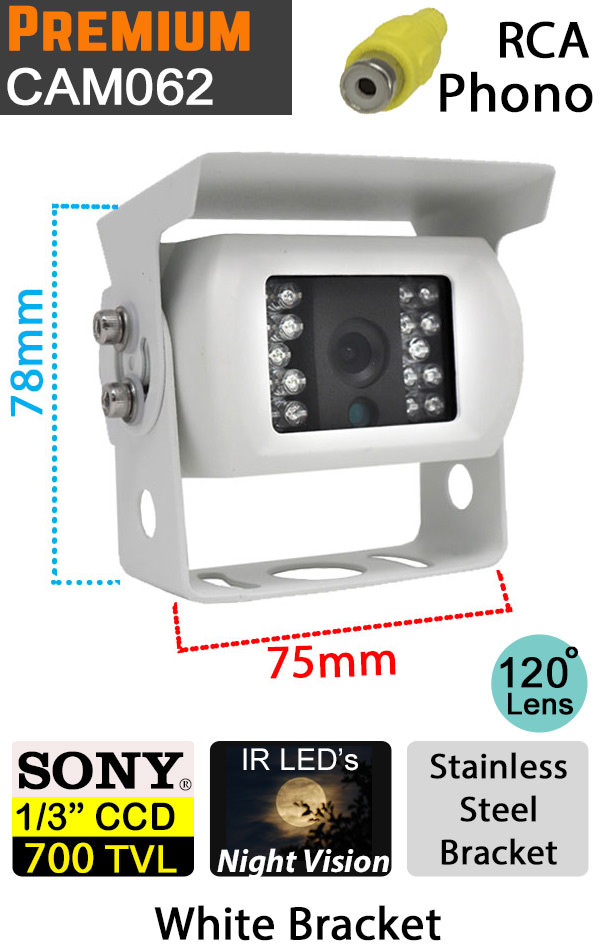

CAM062 - White bracket reverse camera - Sony 1/3" 700TVL CCD sensor - RCA/Phono connector
An RCA Phono connector bracket camera that gives you everything you could ask for. Painted matt white, uses a stainless steel bracket to prevent rusting. Fitted with a very high spec Sony 811 1/3" Sony CCD 700TVL image sensor. Night Vision IR LED's and a quality lens giving 120 degrees wide angle viewing.
This reversing camera is the phono/RCA version of the staple of our range, used on numerous vehicles and machines for a number of different uses. Being on a bracket makes this camera so versatile, the bracket itself is made from stainless steel to prevent rusting. The image sensor (the part that captures the picture) is the very respected 1/3" Sony CCD 960H 700TVL 811 model. 18 IR LED's coupled with the sensitive image sensor means this camera works well in the dark. The camera comes with a 45cm fly lead with a phono socket and a 2.1/5.5mm DC socket at the end, we provide a 1.5M DC plug to red/black bare wire to connect this to your reversing light supply. We can supply video signal cables and power cables/extensions.
Technical Specs
Image Sensor :1/3 SONY CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Minimum Illuminstion: 0.01 LUX
S/N Ratio: ≥48dB（AGC OFF）
Horizontal Resolution: 700 TV lines
Video Output:1.0vp-p,75Ohm
Backlight compensation: Auto
Vibration Rate: 4G
Built-in Lens: 3.6mm
Lens Angle: 120° (D) / 85°（H）
Working Temperature: -20℃ to 80℃ RH95% Max
Storage Temperature: -30℃ to 85℃ RH95% Max
Waterproof to Ip68
18 Infra red LEDs to provide night view
Mirror image
Stainless Steel Bracket (painted)
