CAM022 - Black bracket reversing camera - Sony 1/3" 700TVL CCD sensor - 4 pin connector

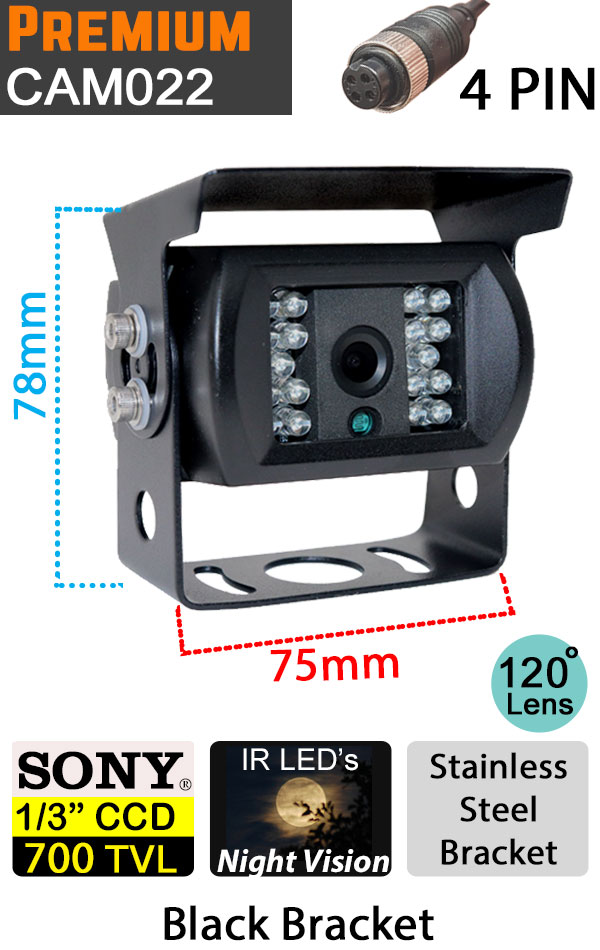

The CAM022 is a staple of our range, used on numerous vehicles and machines for a number of different uses. Being on a bracket makes this camera so versatile, the bracket itself is made from stainless steel to prevent rusting. The image sensor (the part that captures the picture) is the very respected 1/3" Sony CCD 960H 700TVL 811 model. 18 IR LED's coupled with the sensitive image sensor means this camera works well in the dark. The camera comes with a 45cm fly lead with a 4 pin aviation connector at the end, extension cables and adaptors (for some connector types) are available.
The reversing camera described in the provided information is a popular style of camera used in motorhomes, caravans, HGVs, and vans. It features a stainless steel bracket that has been painted matte black for better durability compared to gloss finishes. The bracket is corrosion-resistant and designed to last a long time.
The camera uses a Sony 1/3" CCD 700TVL image sensor, which provides good picture quality during both day and night. It has night vision capabilities with infrared (IR) LEDs that automatically activate in low light conditions, allowing you to see in the dark while parking. These IR LEDs are only visible to the camera and won't distract vehicles behind you with bright lights.
To ensure proper visibility, the reversing camera sends a mirror image to the monitor. This mirroring is essential for cameras pointing backward, as it displays obstacles on the left side of the display as they appear on the left in real life, similar to how a mirror works.
The camera is equipped with a fly lead that has a 4-pin screw connector, also known as an aviation connector. This type of connector is preferred for its waterproof properties, thanks to the mechanical seal created by a rubber O-ring when the screw locking collar is tightened. It ensures a secure and reliable connection.
The camera is rated waterproof to IP68, meaning it can withstand various weather conditions. It has an approximate viewing angle of 120 degrees when diagonally measured, providing a wide perspective for better visibility.
In summary, the reversing camera features a durable black-painted stainless steel bracket, a Sony 1/3" CCD 700TVL image sensor for high-quality pictures, night vision IR LEDs, a mirror image display, a waterproof 4-pin screw connector, and a wide viewing angle.
Technical Specs
Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR leds on)
Video Output:1.0vp-p,75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50Sec-12.5μSec (PAL)
BLC: Auto
Current Consumption:100mA
Waterproof to Ip68
18 Infra red LEDs to provide night view
Waterproof with adjustable shade to prevent glare from sun
Mirror image only
Stainless Steel Bracket (painted)
