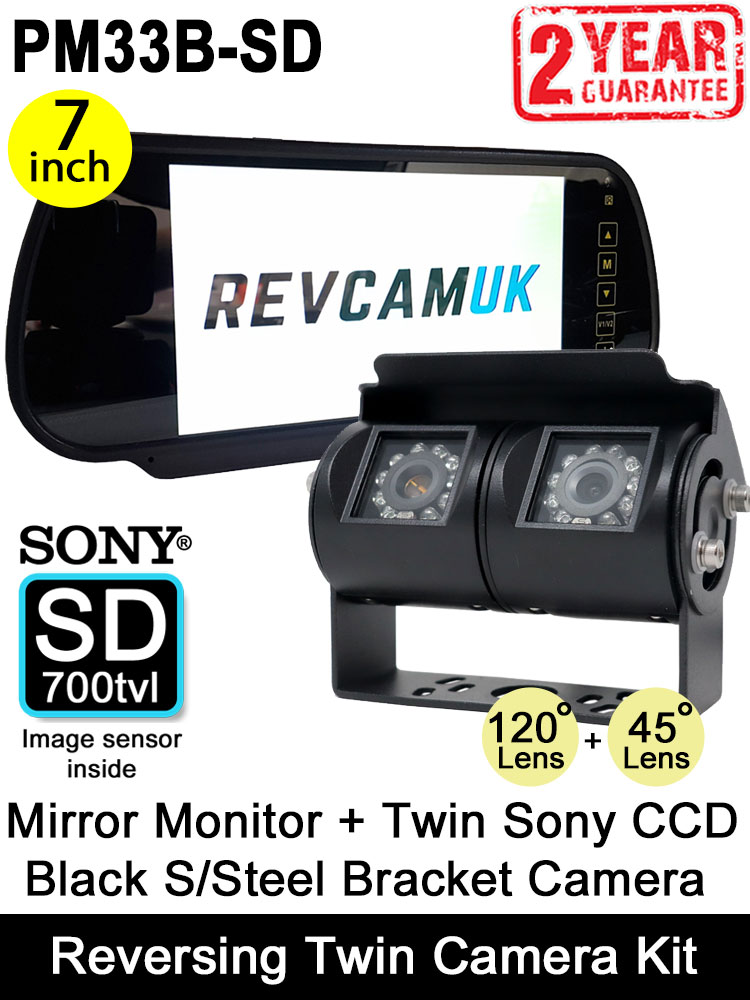

7" Mirror Monitor + Black Bracket Sony CCD Twin View Reversing + Rear View Camera Kit | PM33W-SD
Our popular rear view mirror mount monitor combined with our popular twin reversing and rear view driving camera. Two cameras in one painted stainless steel bracket. Camera comes fitted with the long established high resolution 1/3" Sony CCD image sensors.
We have a Sony AHD high definition upgrade version of this reversing camera kit, click here to view
Rear View Mirror Monitor Display:
- 7" display for clear viewing.
- A good quality 800x480 digital high resolution display with excellent colour replication.
- Adjustable guidelines can be added/removed to the image to assist with parking. To use this function you will need to connect the green trigger wire to the reverse light feed (see PDF monitor instructions - pages 5 and 6 for more details).
- Attaches to the existing interior mirror using strong, spring-loaded grips.

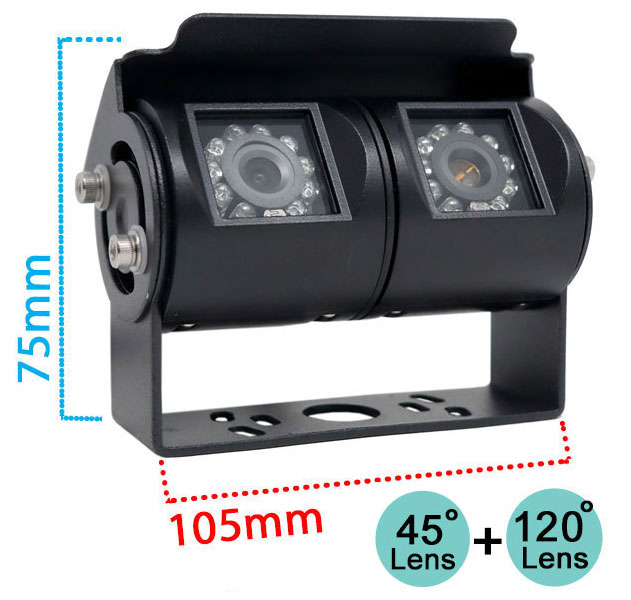

Black Bracket Twin Driving Camera + Reversing Camera:
- Comes with a twin bracket camera that is fitted with our top rated (for standard definition) image sensor - Sony CCD 700TVL.
- Two cameras mounted in to one bracket. The camera you will adjust to face down is fitted with a wide angle 120 degree lens - ideal for giving a good wide spread around the rear of the vehicle. The camera you will face backwards to watch traffic is fitted with a narrow angle 45 degree lens - ideal for seeing further backwards.
- Fitted with a stainless steel bracket for rust protection.
Guarantee and Support:
- Comes with a 2-year guarantee.
- Offers lifetime support from UK specialists.
Installation and Power Options:
- Easy installation with various power options.
- Single power connection powers the entire system.
- Standard hardwiring ALWAYS included even when adding the additional connectors.
- See our Fuse Taps / Piggyback Fuse Holders Category for the latest and easiest way of wiring your system in to your vehicles fuse box. We even have a selection with a 2M cable to reach the fuse box of your choice. This is fitted with an Earth/Ground terminal on the black wire, which can be pulled/separated away from the red wire if desired to run elsewhere to a chassis screw or bolt.
You have the option to add additional leads that plug in to a DC socket on the monitor wiring harness. You will always be supplied with the standard power wire, which gives you a red wire and a black wire to solder / crimp to a power supply.
On the drop down menus you will notice there are two options selectable. One to add a lighter plug, one for a fuse tap. Scroll down for details on each option.
Power Supply Option - Lighter Plug
Selecting this option adds an additional lighter plug lead - attaches to a socket on the end of the 300cm monitor wiring loom/harness. Some people order this option just to try out there new kit before hardwiring permanently.
Power Supply Option - Fuse Tap (Mini blade, Standard blade)
Selecting this option adds an additional easy-wire fuse tap lead with built in earth terminal connector.
We designed and had this product produced in 2023, and they have been very popular. We wanted to create something that meant our customers could hardwire a reversing camera system to their vehicle with ease and minimal tools. Fuse taps have already become popular for installing dash cams, so we wanted to make them more popular for reversing camera kits too.
Usually fuse taps have no earth terminal connector and require crimp tools to connect to your wiring - our easy wire fuse tap kits are different. They come supplied with 2M of twin wire (power + earth) attached. The wires can be pulled apart should you wish to earth to an area far from the fuse box.
Choose a fuse that's active when the ignition is on. Remove the original fuse and place it in the empty slot of the fuse tap. The correct rated fuse for the new camera system is supplied already installed in the correct slot. Install the fuse tap (with the two fuses fitted) in to the fuse box (where you removed the original fuse). Lastly, connect the earth terminal to a chassis bolt or screw (or add a new bolt/screw to secure it).
The mini blade is the most commonly seen fuse size on modern vehicles.
Standard blade used to be the most common fuse size installed, and is still commonly seen, even on very recent vehicles.

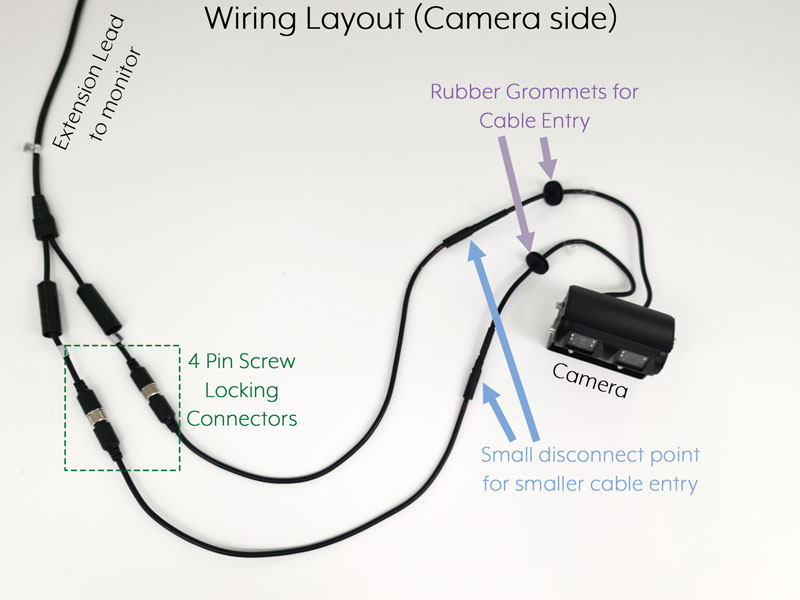

 Click preview image to download the PDF file | For all of our cabled reversing camera kits Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need. Some of our cameras will come with extra specific guidance or manuals to help that specific install. |
 Click preview image to download the PDF file | Standard Definition High Resolution Clip-Over Mirror Monitor If you choose a mirror monitor kit with the clip over monitor and you don't select the AHD upgrade option then this monitor will be supplied. It is a great monitor with lots of menu options, lovely colour, adjustable guidelines, and good viewing range. |
 Click preview image to download the PDF file | Twin lens reversing and rear view camera fitting guide One of our most popular reversing and rear view cameras. Covers fitment and adjustment of the camera, as well as camera care notes. |
Monitor
7” Diagonally Measured Colour LCD screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Digital Screen Resolution: 800 x3(RGB)x480
2 Inputs
PAL/NTSC/AUTO
Camera
Image Device:1/3 SONY 811 CCD 960H 700TVL
TV System: PAL
Effective Pixels: 976*582
Apect Ratio of output: 4:3
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 700 TV lines
Minimum Illumination:0 Lux (IR LEDs on)
Waterproof to Ip68
Infrared LEDs to provide night view
Two Cameras one with wide 120-degree lens and one with narrow 45-degree lens
Mirror image only
Stainless Steel Bracket (painted)
