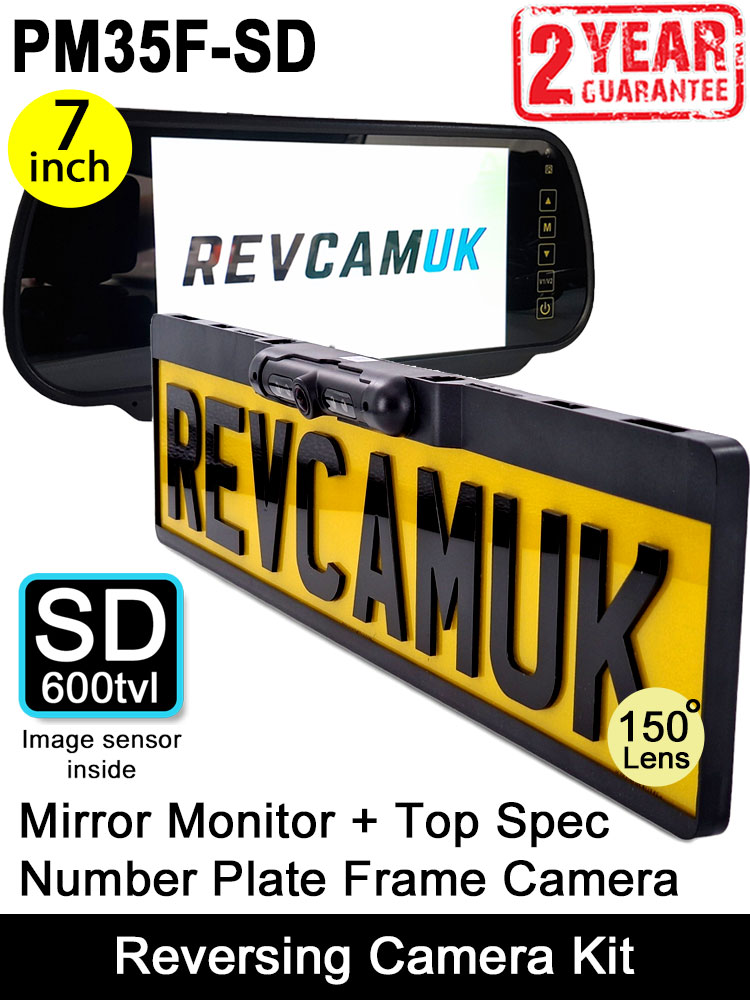

7" Mirror Monitor + Number Plate Frame Reversing Camera Kit | PM35F-SD

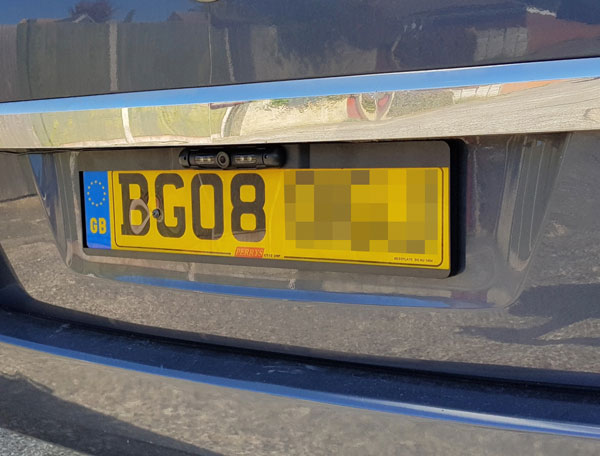

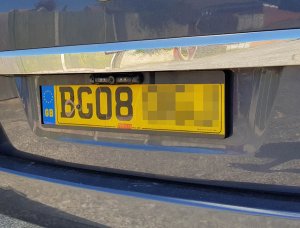

This is a very popular kit especially for cars, the mirror monitor clips over your existing rear view mirror, and the camera is built into a numberplate frame. To attach the camera/frame to the vehicle you simply need to insert your numberplate in to the frame, then reattach to the vehicle using the original screws.
Rear View Mirror Monitor Display:
- 7" display for clear viewing.
- A good quality 800x480 digital high resolution display with excellent colour replication.
- Adjustable guidelines can be added/removed to the image to assist with parking. To use this function you will need to connect the green trigger wire to the reverse light feed (see PDF monitor instructions - pages 5 and 6 for more details).
- Attaches to the existing interior mirror using strong, spring-loaded grips.
Number Plate Frame Reversing Camera:
- Comes with a high resolution 600TVL image sensor.
- Very wide and good quality aspheric lens with 150 degrees wide angle field of view.
- Made by one of the absolute highest grade manufacturers, with "bulletproof" reliability, and a very good performance - not to be confused with cheaper similar looking cameras (which we could purchase at half the price).
- Video below shows how easy it is to mount the reversing camera to your vehicle.
- See our video below, it shows both the standard specification (supplied in this kit) compared to the upgraded version. Click here to view/purchase the upgraded number plate frame reversing camera kit.
Guarantee and Support:
- Comes with a 2-year guarantee.
- Offers lifetime support from UK specialists.
Installation and Power Options:
- Easy installation with various power options.
- Single power connection powers the entire system.
- Standard hardwiring ALWAYS included even when adding the additional connectors.
- See our Fuse Taps / Piggyback Fuse Holders Category for the latest and easiest way of wiring your system in to your vehicles fuse box. We even have a selection with a 2M cable to reach the fuse box of your choice. This is fitted with an Earth/Ground terminal on the black wire, which can be pulled/separated away from the red wire if desired to run elsewhere to a chassis screw or bolt.
 Click preview image to download the PDF file | For all of our cabled reversing camera kits Our main 4 pin reversing camera kit instructions. We prefer 4 pin screw locking connector cables in our kits for numerous reasons (no canbus issues, stable voltage, ability for always on, reliability, and heavy duty connectors). This downloadable PDF file will give you all the advice you will need. Some of our cameras will come with extra specific guidance or manuals to help that specific install. |
 Click preview image to download the PDF file | MON293GL Standard Definition High Resolution Clip-Over Mirror Monitor If you choose a mirror monitor kit with the clip over monitor and you don't select the AHD upgrade option then this monitor will be supplied. It is a great monitor with lots of menu options, lovely colour, adjustable guidelines, and good viewing range. |
 Click preview image to download the PDF file | Instructions for fitting our CAM103 and CAM104 number plate reversing cameras Instructions on fitting and adjusting the two most popular number plate reversing cameras that we stock. |
Monitor
7” Diagonally Measured Colour LCD screen
Power supply: 12V/24V
Power Consumption: 7.5W Max
Digital Screen Resolution: 800 x3(RGB)x480
21 LED Backlight (Brighter than other 14 LED versions)
2 Inputs
PAL/NTSC/AUTO
Camera
TV System: PAL
Effective Pixels: 960 (H) x 576 (V)
Resolution: 600TV Lines
Sensing Area: 4.880mm x 3.670mm
Scanning System: 2:1 Interlace
Sync. System: Internal
Minimum Illumination: 0 lux(LED ON)
Horizontal Sync. Frequency: 15.625KHz
Vertical Sync. Frequency: 50Hz
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 43.3dB
White Balance: Auto
Electronic Shutter: 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto
Power Supply: DC12V
Operating Temperature: -20°C~70°C , RH95% MAX
Storage Temperature: -40°C~80°C, RH95% MAX
Lens Angle: 150°
